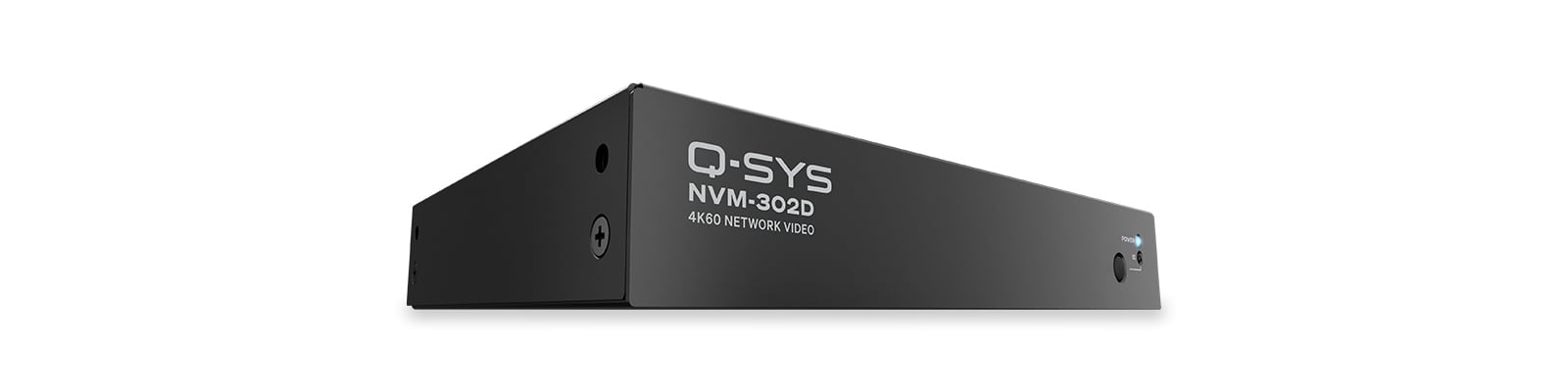

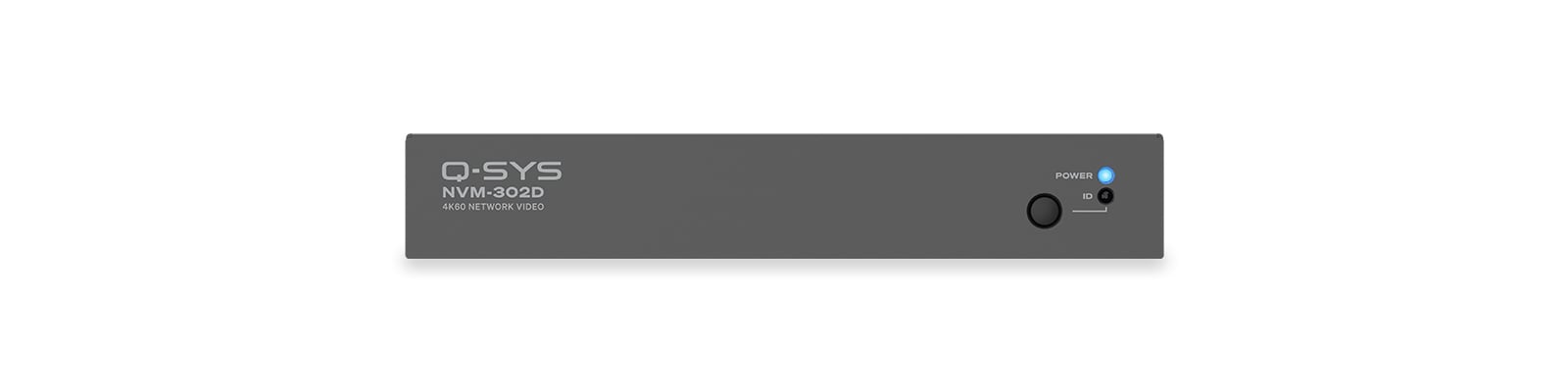

NVM-302D
Network video decoder
Q-SYS NVM Series network video endpoints deliver high-quality, low-bandwidth network video at scale to a broad range of spaces for hospitality, entertainment, collaboration, government and more. The Q-SYS NVM-302D is a network HDMI decoder that comes pre-installed with a single-channel decode video app.
Note: To deliver the best possible experience and support as availability expands, NVM Series is being introduced through a phased regional rollout, with broader availability planned soon. The Americas are among the first regions in this rollout, with availability in APAC, EMEA and SAARC varying by market; please check with your local Q-SYS representative for the latest information specific to your area.
Features und Vorteile
- Der Decoder der NVM-Serie NVM-302D enthält eine vorinstallierte App für Single-Decode-Streaming-Video (NVM-D1).
- Mediacast AV routing paradigm enables high-quality, network-efficient video distribution at scale
- Supports resolutions up to 4K60 4:4:4
- RS-232 and IR connectivity for third-party device control
- AV Bridging via USB-C (coming to a future firmware update)
Scale Q-SYS Video Experiences.
Q-SYS NVM Series video endpoints expand the existing video use cases for your Q-SYS systems, pairing low-density HDMI I/O with network-efficient AV transport to deliver Q-SYS network video that is purpose-built for large-scale deployments into a broader range of spaces from entertainment and hospitality to collaboration, government and more.
NVM Series are designed on a software paradigm that reduces the reliance on single-purpose hardware and is ready for future feature updates and additional video apps that will allow your Q-SYS system to evolve alongside your business needs.
Design Natively. Deploy Faster.
The new NVM Designer tool is an intuitive method for configuring and deploying large scale video systems natively within Q-SYS Designer Software, the singular software program that enables the rest of your system design, including DSP programming, AV routing and user control interface design. NVM Designer enables no-code deployment of hundreds of endpoints in minutes, without the need for additional video matrix or management hardware.
Deliver Holistic Q-SYS Experiences.
Driven by the Q-SYS Full Stack AV Platform, NVM Series video endpoints leverage an integrated audio, video and control engine that streamlines system integration, from no-code workflows and end-to-end automation to comprehensive user control, making it even easier to expand the Q-SYS experience into more types of application spaces.
Datenblatt

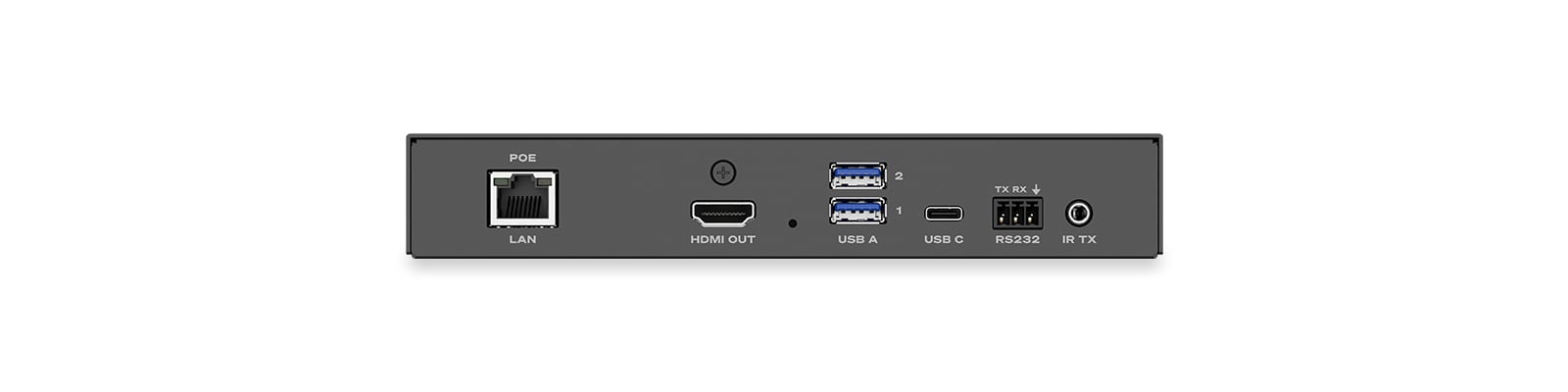

| Video I/O | |||
| HDMI 2.0 Ausgang | 1x HDMI 2.0 output capable of transmitting output video formats up to 4K60 4:4:4 when using NVM-D1 application HDCP 2.3 and 1.4 supported | ||
| USB-C Input/Output | 1x USB-C 3.1 Gen 2 (enabled for bridging in future firmware release) | ||
| Audio I/O | |||
| HDMI Input | 8 PCM-Audio-Kanäle, Routing über Q-SYS | ||
| Allgemeines | |||
| Abmessungen | 7.3 x 5.2 x 1.2 in (185 x 131.5 x 30.5 mm) | ||
| Gewicht | 1.75 lbs. (794 g) | ||
| Montageoptionen | Befestigungsmaterial für die Oberflächenmontage im Lieferumfang enthalten; kompatibel mit dem Zubehörteil NV-RK für die Rackmontage | ||
| Sonstiges | |||
| RS-232 | 1x RS-232 (3.5mm pitch euro-block) | ||
| IR Transmit | 1x IR Transmit (3.5mm mini jack) | ||
| USB Type C | USB 3.2 Gen 1 Typ-C-Anschluss – Geräte- und Host-Modus werden unterstützt – USB-AV-Bridging wird in einer zukünftigen Firmware-Version unterstützt – HID-Routing wird unterstützt | ||
| USB Type A | 2x USB 3.2 Gen 1 – 5 V, 900 mA (gemeinsam für USB-A- und USB-C-Anschlüsse) – HID-Routing wird unterstützt | ||
| LAN | 2.5GBASE-T compliant | ||
| Power-over-Ethernet | PoE+, 802.3at Type 2, Class 4 (25.5W at PD, 30W at PSE) | ||
| Betriebsbedingungen | |||
| Betriebstemperatur | 0° bis 40° C (32° bis 104° F) | ||
| Relative Luftfeuchtigkeit | 5 bis 90 RH % nicht kondensierend | ||
| Lagertemperatur | -20° bis +70° C (-4° bis 158° F) | ||
| Lieferumfang | NVM-302D video endpoint Euro-terminal connectors for RS-232 Surface mounting accessories Safety and warranty statements | ||
| Maximale Anzahl Peripheriegeräte | |||
| Audio Channels | Each routing group consumes 1x audio channel - The NVM-302D consumes 1x audio channel when breakout audio is enabled. - Limitations of audio channels is based on the Core used in the design. | ||
